How to Train Your Latent Control Barrier Function:
Smooth Safety Filtering Under Hard-to-Model Constraints

Previous work has shown proposed latent safety filters to safeguard against hard-to-model safety constraints such as spilling, burning, or toppling. These methods approximate the solution of a Hamilton-Jacobi reachability problem in a learned latent world model, specifying constraints through a binary classification in the world model's latent space. Concretely, latent safety filters can be obtained by (approximately) solving the following time-discounted Hamilton-Jacobi-Bellman fixed point equation.

This results in a safety Q-function that can be used to monitor the safety of a task-oriented action, and a safety fallback policy. However, existing approaches rely on “least-restrictive” filtering that discretely switches between the nominal and safety policies, degrading the robot's performance. Since recent work has adapted HJ-based value functions into control barrier functions (CBFs), it is compelling to try to use this Q-function for smooth CBF-style safety filtering that minimally alters the nominal policy while maintaining safety.

However we identify two key issues that prevent using current latent safety filters for smooth CBF-style filtering.

We previous methods for training latent safety filters train the margin function as a binary classifier in a world model's latent space. While this is sufficient for identifying the boundary of the unsafe set, the resulting value function has poor gradients for CBF-style safety filtering. We show in an example of how these poor gradients degrade optimization-based safety filtering in a privileged state space with value function computed using traditional numerical methods. Even in the absence of learning-based approximation errors, binary margin functions prevent smooth safety filtering (left). In contrast, smooth margin functions enable smooth safety filtering (right).

In high-dimensional state spaces, such as those of a latent world model, the solution to the Hamilton-Jacobi reachability problem is typically approximated using actor-critic reinforcement learning (RL). In these methods, trajectory rollouts of the learned safety policy are stored into a replay buffer, and a Q-function is trained via supervised learning to a Bellman target sampled from this buffer.

However, this only trains the Q-function on actions from the fallback policy. This off-the-shelf training process is at odds with how the critic will be used at deployment in CBF-style filtering, where we must evaluate the safety of task-relevant actions from a nominal policy—actions the critic has likely never encountered during training.

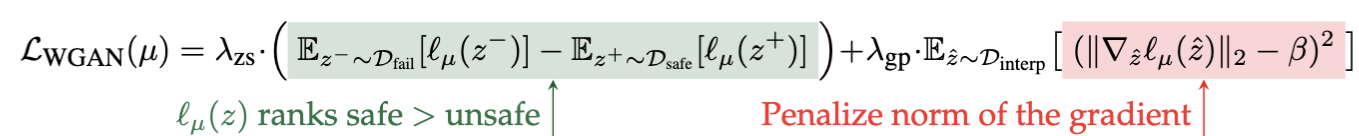

Our key insight for learning smooth margins without dense supervision is to draw inspiration from Wasserstein GANs (WGAN). This method learns a smooth discriminator that distinguishes between two classes of samples by regularizing its Lipschitz constant. We modify prior approaches to learning a safety margin function by including the following WGAN loss:

To address the RL approximation issue, we propose to modify the replay buffer to store an equal amount of nominal policy and safety fallback policy rollouts. This simple modification ensures that the Q-function is trained on actions from both the nominal and safety policies, improving its accuracy where it matters most for CBF-style filtering. In practice, we store (z, a, l, z', a') tuples in the replay buffer, where a and a' are sampled from the same policy.

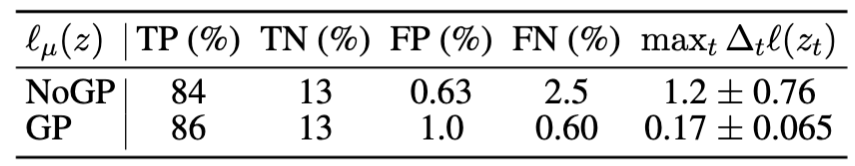

We first analyze the impact of our proposed smooth margin loss on a simple Dubins car with a collision avoidance constraint (environment pictured under Issue 1). We report for both our method (GP) and a baseline from prior work (NoGP) the classification accuracy and smoothness (measured as the maximum |l(z) - l(z')| over a trajectory). We find our method greatly improves the smoothness of the margin function while maintaining similar classification accuracy.

We next evaluate the ability of the our learned value function for smooth safety filtering. We find that smoothing the margin function is critical for smooth safety filtering. Our method is able to reduce the override magnitude by 45% relative to least-restrictive filtering while maintaining 100% safety rate. In contrast, the baseline value function (NoGP) can only reduce the action override by 11%.

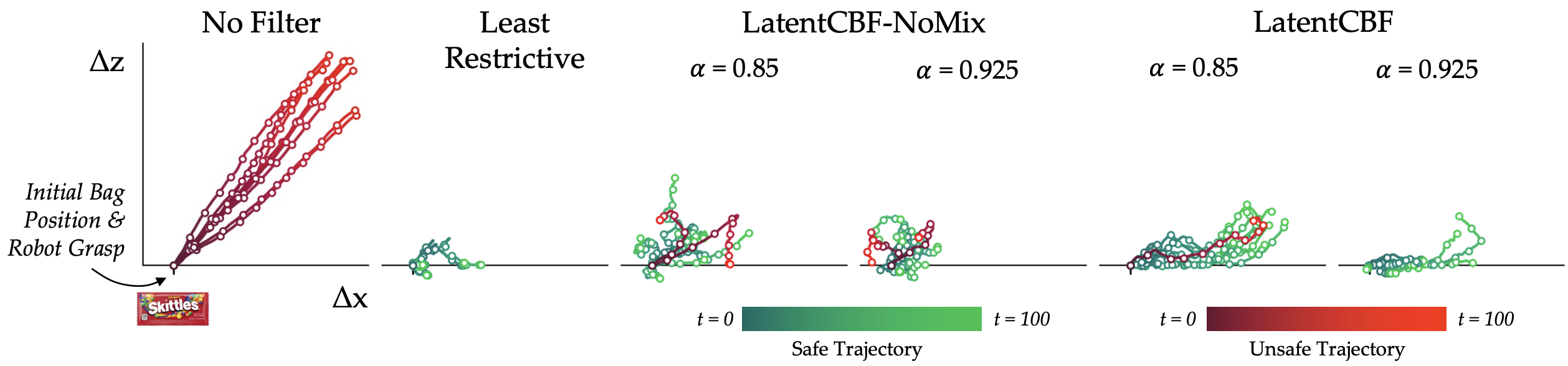

Moving to a 7-DoF robot arm, we evaluate the necessity of mixing in task-oriented actions into the replay buffer. We test our learned value function's ability to filter the robot arm diagonally lifting an opened bag of candy. We qualtitaively visualize the x-z trajectories for 10 unfiltered rollouts (None), a baseline without replay buffer mixing (LatentCBF-NoMix), and our method (LatentCBF). Both CBFs use the smooth margin function for fair comparison.

Without including task oriented actions in the replay buffer, the value function leads to poor safety estimates and executes erratic actions unaligned with the task policy. In contrast, our method successfully filters the nominal policy by eliminating the unsafe vertical lifting component of the action while allowing the robot to slide the bag along the table.

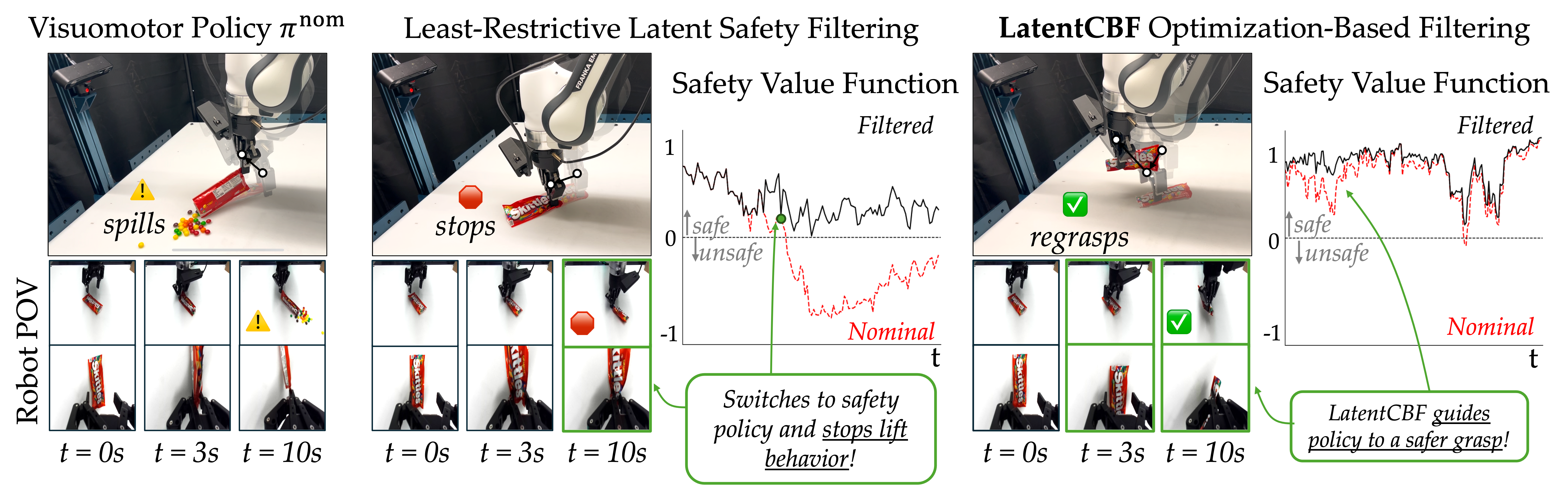

Finally, we evaluate the closed loop performance of our latent CBF when filtering a nominal diffusion policy. We adopt the skittles lifting task from prior work where the robot must lift an opened bag of skittles without spilling. We find that our method is just as safe as prior work while steering an unsafe nominal policy toward safe behavior modes.
